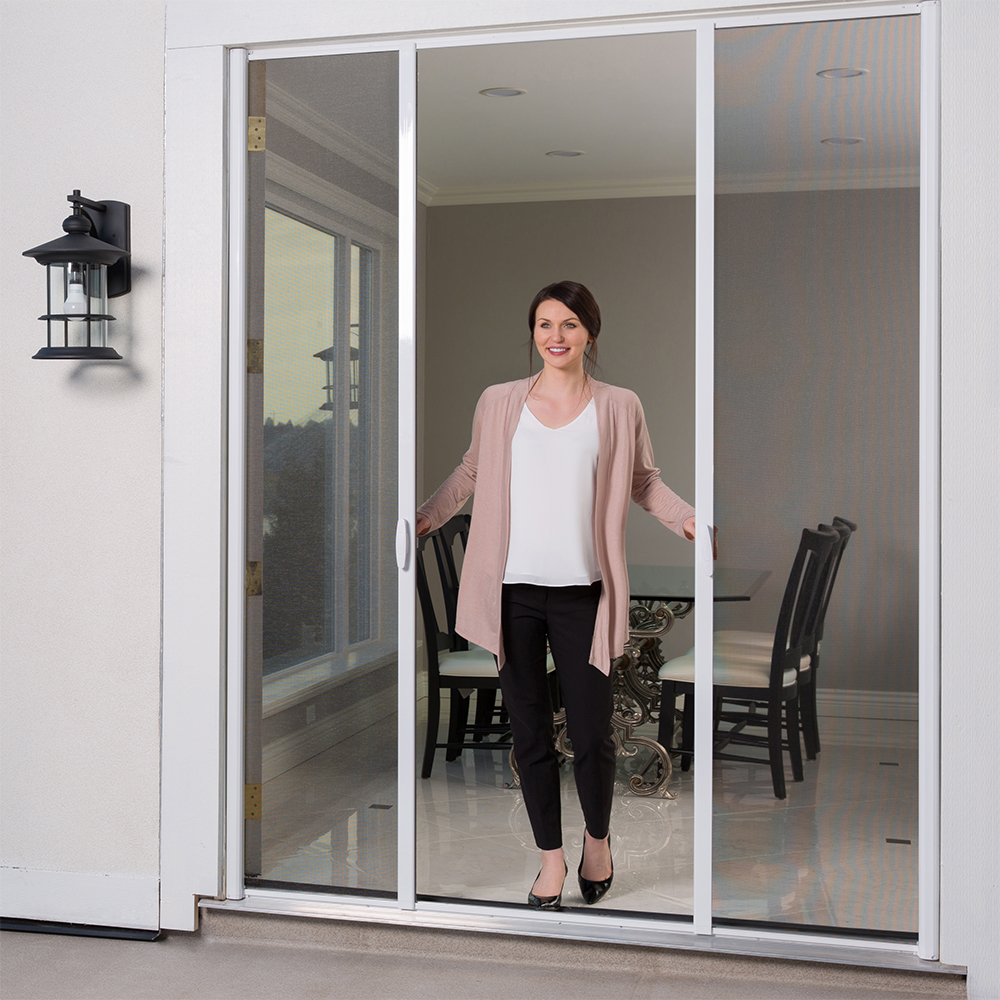

McCoy Pleated System - Double Shutter

Product Description

McCoy Pleated Mesh Features

McCoy Pleated Meshes are designed for durability, smooth operation, and modern aesthetics. Available in both single sash and double sash versions, they offer flexibility for different installation needs.

• Available in single sash and double sash versions
• Fast and easy installation
• Can be installed on door/window profile (frontal installation) or on window sill (inset installation)
• Extra sill width required: 26 mm (for 26 mm system) and 17 mm (for 17 mm system)
• Minimum frame opening (width/height) to sill edges: 45 mm
• Maximum size (single sash): 3000 mm × 1800 mm
• Maximum size (double sash): 3000 mm × 3600 mm
• Special recessed profile design eliminates the need for handles; finger recess allows easy operation
• Vectran String (Japanese technology) is zero-stretch and high-endurance, preventing breakage and extending service life
• Corrosion-resistant corner joint plastics enhance durability and aesthetics; suitable for all weather conditions
• Wind Hook System prevents mesh from coming out of its slot and rotates 360° for secure performance in wind conditions

Key Technology Advantages

Vectran String
A zero-stretch, high-endurance material that prevents string breakage and ensures long-lasting performance.
Benefit: Strong durability and extended product life.

Wind Hook System
A specially engineered system that keeps the mesh securely in place even in strong winds.
Benefit: Improved stability and reduced maintenance.

Corrosion-Resistant Corner Joints
Specially designed plastic components that resist corrosion and enhance overall appearance.
Benefit: Long-lasting strength with premium aesthetics.
