McCoy Single Sash Tilt & Turn Hardware

Product Description

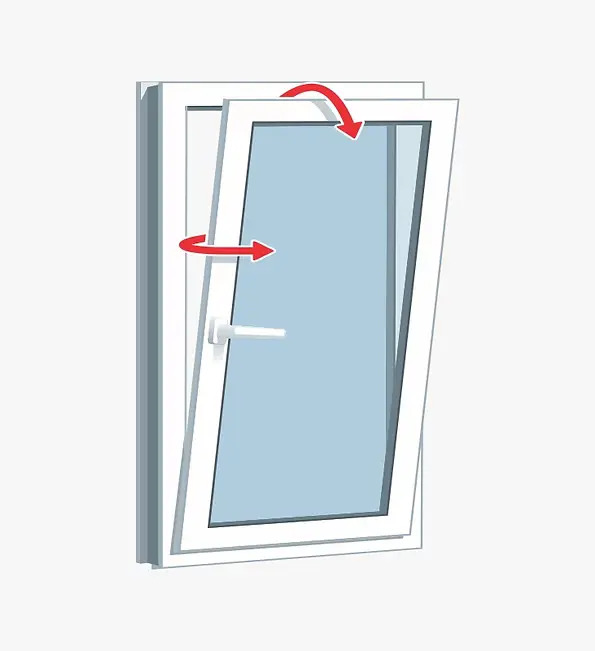

• Single sash Tilt and Turn hardware for uPVC doors & windows.​

​

• Available in sizes

  • sash width 286 mm / 395 mm - 1600 mm

  • sash height 262 mm / 480 mm - 2400 mm

​

• Sash weight

  • 80 kg with ø3 mm hinge pin

  • 100 kg with ø6 mm Hinge pin

​

• Tilt & Turn stay arm can be used for left and right hand orientations by adjusting the hinge.

​

• Highly corrosion resistant with zinc coating and three coats of passivation of thickness 10μm - 12μm.

​

• Successfully salt spray tested for 480 hours, and qualified for class 5 corrosion resistance, as per EN 1670:2007 (correction 2008-06) corrosion test in artificial atmospheres – salt spray test din EN ISO 9227:2006-10.
