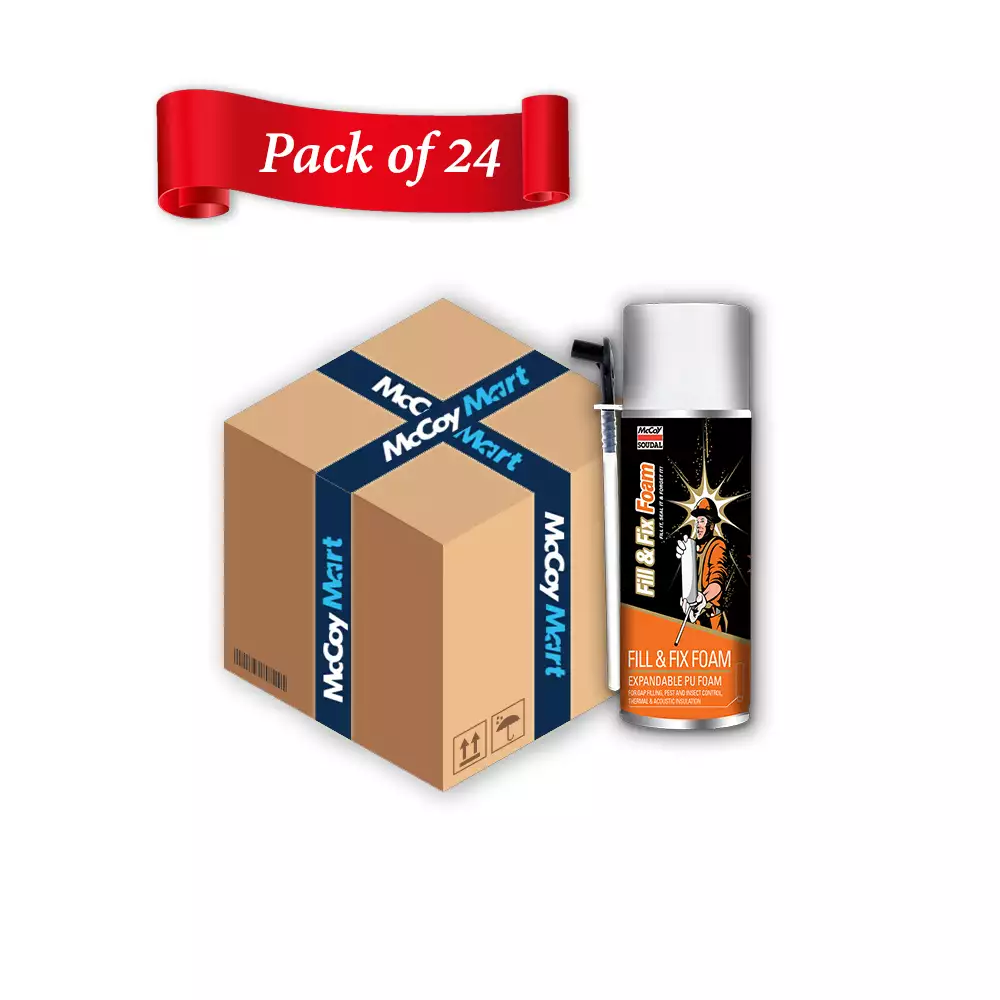

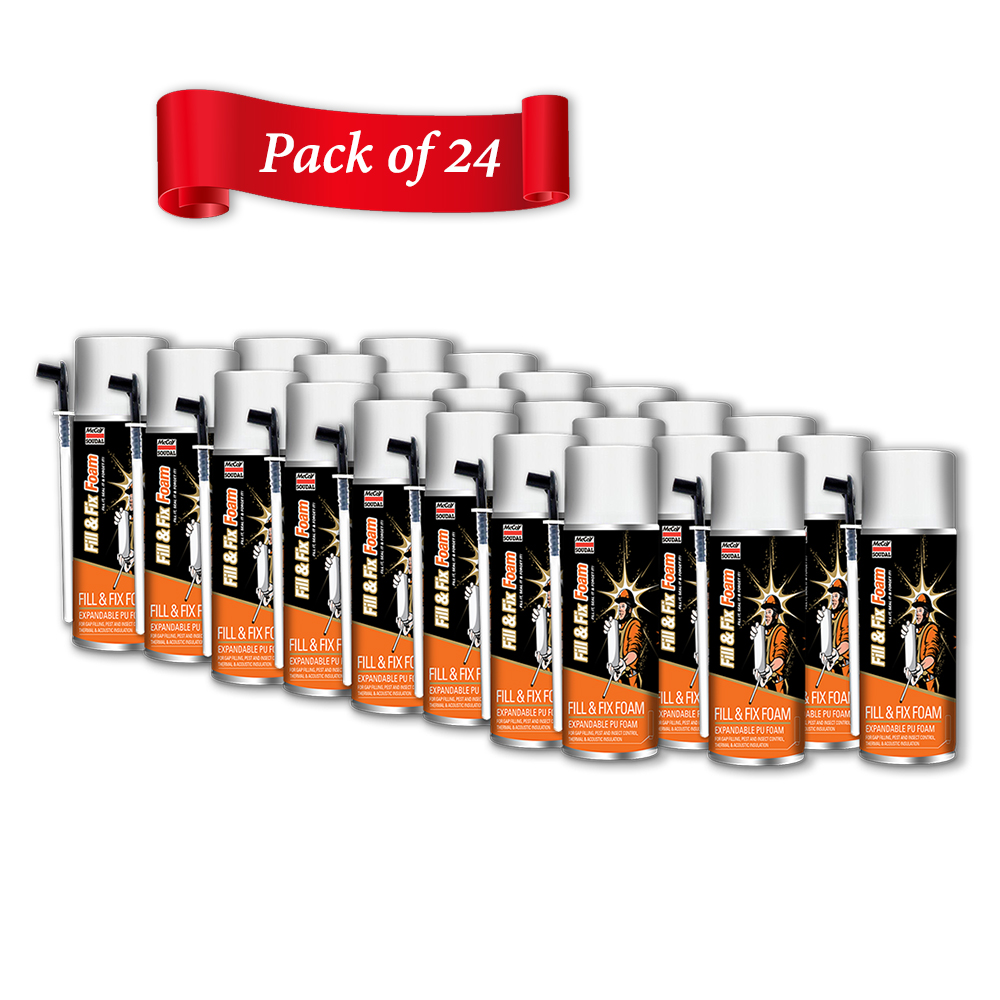

Expandable PU Foam Fill & Fix Spray Mini (300ml) Pack - McCoy Soudal

Product Description

McCoy Soudal Expandable PU Foam Mini (300ml)

PU Foam Mini is a one-component, selfexpanding, ready to use polyurethane foam with CFC-free propellants, which are completely harmless to the ozone layer.

Properties :

• Base : Polyurethane
• Consistency : Stable foam, thixotopic
• Curing system : Moisture-cure, thixotropic
• Skin Formation (FEICA TM 1014) : 8 min
• Cutting Time (FEICA TM 1005) : 28 min
• Density : Ca. 25 kg/m³
• Sound insulation (EN ISO 717-1) : 58 dB
• Insulation factor (DIN52612) : 35 mW/m.K
• Curing time : 90 min for a 30 mm bead
• Box Yield (FEICA TM 1003) : 300 ml yields ca. 12 l of foam 500 ml yields ca. 20 l of foam 600 ml yields ca. 24 l of foam 750 ml yields ca. 29 l of foam
• Joint Yield (FEICA TM 1002) : 750 ml yields ca. 21 m of foam
• Shrinkage (FEICA TM 1004) : < 2%
• Post-expansion (FEICA TM 1004) : < 2%
• Cellular Structure : Ca. 70 % closed cells
• Fire rating (DIN4102) : B3
• Insulation factor (DIN52612) : 35 mW/m.K
• Compressive strength (FEICA TM 1011) : Ca. 2,0 N/cm²
• Shear strength (FEICA TM 1012) : Ca. 5,0 N/cm²
• Water absorption : 1 % volume
• Temperature resistance : -40 °C till +90 °C (cured)

Applications :

• Installation of window and door frames.
• Filling of cavities.
• Sealing of all openings in roof constructions.
• Creation of a soundproof screen.
• Mounting and sealing of window and door frames.
• Connecting of insulation materials and roof constructions.
• Application of soundproofing layers on motors.
• Improving thermal insulation in cooling systems.

Characteristics :

• Excellent adhesion on most substrates (except Teflon, PE and PP).
• High thermal and acoustical insulation.
• Very good filling capacities.
• excellent stability (no shrink or post expansion).
• Excellent mounting capacities.
