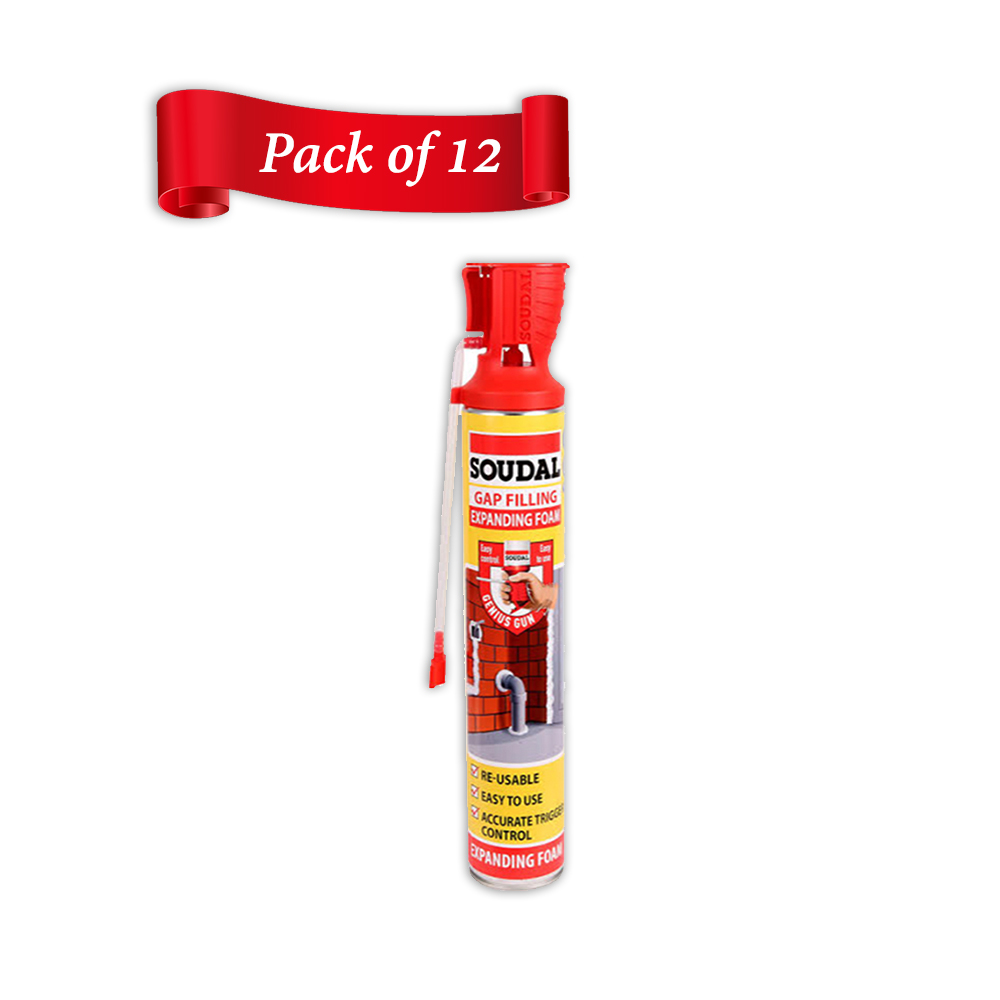

McCoy Soudal Genius Foam (600ml) Bulk Pack

Product Description

Genius Gun Fill & Insulate PU Foam is a ready to use single component self expanding Polyurethane Foam.  Due to the the patented Genius Gun system the application of PU Foam becomes very easy and precise. The extrusion straw can be resealed which makes it possible to continue the application from a partially used canister for several weeks.

Characteristics :

• Excellent form stability – no shrink, no post expansion.
• Excellent filling characteristics.
• Excellent adhesion to all building materials (except PE, PP and PTFE).
• High insulation values, both thermal and acoustical.
• Excellent installation performance.

Application :

• Installation of door- and window frames.
• Filling of cavities.
• Sealing and filling of openings and cavities in roof constructions.
• Creation of an acoustic screen  Creation of a sound deadening layer.
• Improvement of insulation in cold store facilities.
• All other usual PU Foam applications.

Technical Details :

• Base : Polyurethane
• Consistency : Stable Foam (does not sag)
• Curing System : Moisture Cure
• Skin Formation (20°C at  60% R.H.) : Ca 10 min.
• Drying time : Ca 90min – 30mm foam bead (20°C/65% R.H.)
• Foam Yield ( FEICA OCF TM 1003 ) : 600 ml yields 20 l cured foam
• Shrink : None
• Postexpansion : None
• Cellular Structure : Ca 70-80% closed cells\
• Specific Gravity : Ca. 26kg/m³ (extruded, fully cured)
• Temperature Resistance : -40°C until +90°C when cured Short term (up to 1 hour) 120°C
• Kleur : Champagne
• Fire Class : B3 (DIN4102 part2)
• Water Absorption : 1% Vol. (DIN53422)
• Insulation Factor : 33mW/meter Kelvin (DIN 52612)
• Pressure Strength (DIN 53421) : Ca. 3 N/cm²
• Bowing Strength (DIN 53423) : Ca. 7 N/cm²
• Shear Strength (DIN 53427) : Ca. 17 N/cm²

Shelf life and storage :

• 12 months in unopened packaging in a cool and dry storage place at temperatures between +5°C and +25°.
• Always store can with the valve pointed upwards.
