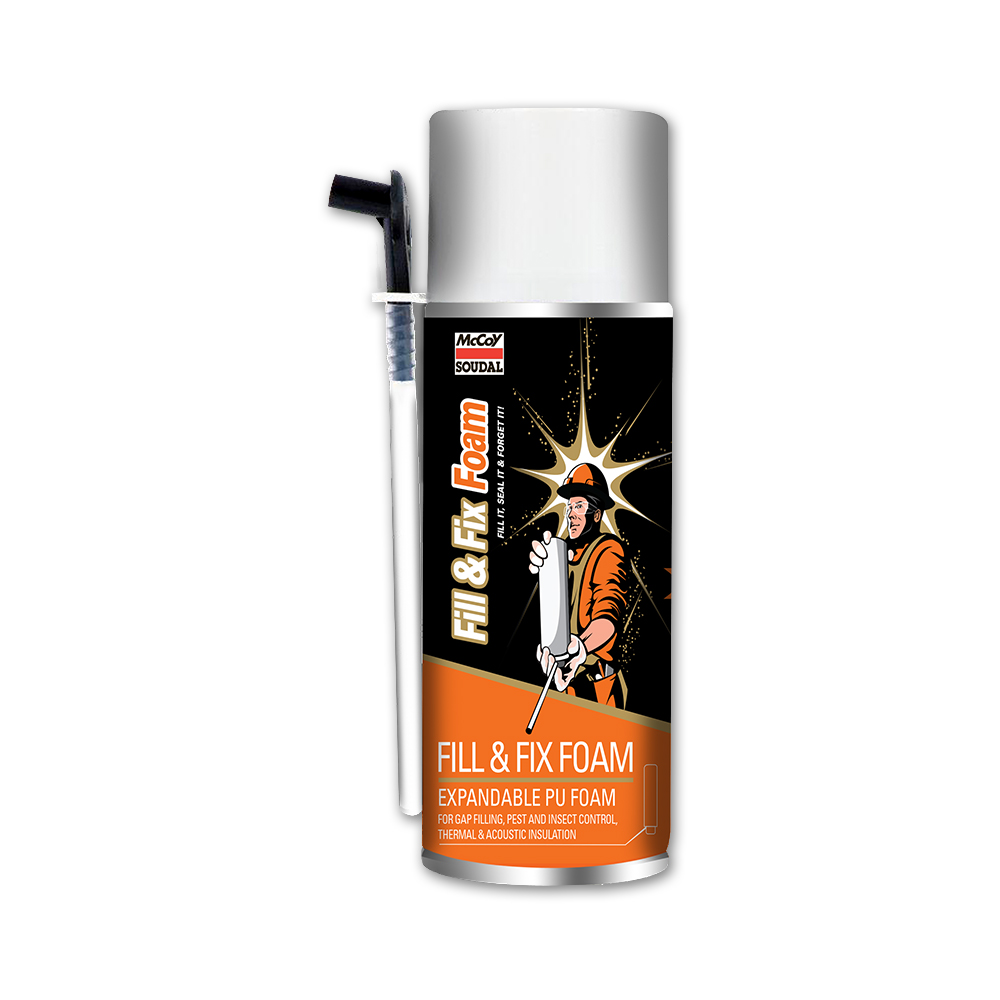

Expandable PU Foam Fill & Fix Spray Mini (300ml) - McCoy Soudal
shareshare
Similar products
whitecross
Share
whitecross

copyLink
0
whitecross

Expandable PU Foam Fill & Fix Spray Mini (300ml) - McCoy Soudal, 685

Availability: Available on Request

Prices reserved for PRO's

(Retail Price star339/- + GST)

6 ratings

Quantity

Want more Qty.

Box of : 24 pcsMin. Order Qty : 1 Box

pcs

Get a quote
whitecross
item quote
Expandable PU Foam Fill & Fix Spray Mini (300ml) - McCoy Soudal

Quantity

Message
Buying for
Project Use
Reselling
Own Construction

Name

E-mail

number

Available Offers

whitecross

Delivery Pincode

(Update)
cod
COD Available
daysreturn7
Days Returns
like
Original Products
whitecross

Select a delivery location to check delivery info

Use pin code to check delivery info
Choose your location
whitecross

Select a delivery location to see product availability and delivery options

+2 More addresses

Product Specification

Volume
300 ml
Model No.
685
warranty
Have a technical query? Reach out our expertClick here
Technical query
whitecross
item quote
Expandable PU Foam Fill & Fix Spray Mini (300ml) - McCoy Soudal

Product Description

McCoy Soudal Expandable PU Foam Mini (300ml)

PU Foam Mini is a one-component, selfexpanding, ready to use polyurethane foam with CFC-free propellants, which are completely harmless to the ozone layer.

Properties :

  • Base : Polyurethane
  • Consistency : Stable foam, thixotopic
  • Curing system : Moisture-cure, thixotropic
  • Skin Formation (FEICA TM 1014) : 8 min
  • Cutting Time (FEICA TM 1005) : 28 min
  • Density : Ca. 25 kg/m³
  • Sound insulation (EN ISO 717-1) : 58 dB
  • Insulation factor (DIN52612) : 35 mW/m.K
  • Curing time : 90 min for a 30 mm bead
  • Box Yield (FEICA TM 1003) : 300 ml yields ca. 12 l of foam 500 ml yields ca. 20 l of foam 600 ml yields ca. 24 l of foam 750 ml yields ca. 29 l of foam
  • Joint Yield (FEICA TM 1002) : 750 ml yields ca. 21 m of foam
  • Shrinkage (FEICA TM 1004) : < 2%
  • Post-expansion (FEICA TM 1004) : < 2%
  • Cellular Structure : Ca. 70 % closed cells
  • Fire rating (DIN4102) : B3
  • Insulation factor (DIN52612) : 35 mW/m.K
  • Compressive strength (FEICA TM 1011) : Ca. 2,0 N/cm²
  • Shear strength (FEICA TM 1012) : Ca. 5,0 N/cm²
  • Water absorption : 1 % volume
  • Temperature resistance : -40 °C till +90 °C (cured)

Applications :

  • Installation of window and door frames.
  • Filling of cavities.
  • Sealing of all openings in roof constructions.
  • Creation of a soundproof screen.
  • Mounting and sealing of window and door frames.
  • Connecting of insulation materials and roof constructions.
  • Application of soundproofing layers on motors.
  • Improving thermal insulation in cooling systems.

Characteristics :

  • Excellent adhesion on most substrates (except Teflon, PE and PP).
  • High thermal and acoustical insulation.
  • Very good filling capacities.
  • excellent stability (no shrink or post expansion).
  • Excellent mounting capacities.

Packaging :

  • 1 Expandable PU Foam Mini (300ml)
